Plotly: How To Create A Line Plot Of A Time Series Variable That Has A Multiple-color Label?

I have datframe as df which has a column that I am passing under y as 'parameter' as shown below and it to be plotted against variable 'time'. This variable has 2 labels under the

Solution 1:

Second suggestion

(Please read my first suggestion further down for a a few assumptions and conditions)

I've managed to build an approach that pretty much should cover all you're asking for here. The only detail that provides a real challenge is how gaps between traces are visualized sinc my second suggestion builds on adding a unique trace for each single label. You may suspect that this would potentially fill the legend with a bunch of duplicate names, but that is taken care of by grouping trace names by the associated label. I've also set up a dictionary where you can specify colors for each label. This is the result:

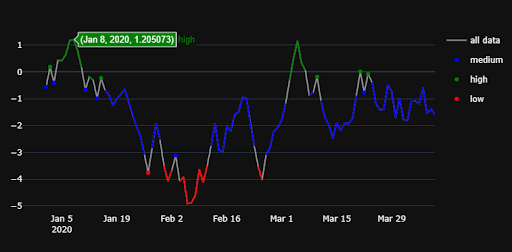

Plot 2.1 - Color defined by label

Notice the grey line? That's the result of the "connectivity" problem I described earlier. You can chose to hide or show that line by setting the opacity parameter (last number) in color='rgba(200,200,200,0.2)'. You'll find a complete code snippet to reproduce this figure below. There's a lot going on there to tweak this whole thing togeteher, so don't hesitate to ask about the details if anything is unclear.

Complete code:

# importsimport plotly.express as px
import plotly.graph_objects as go
import pandas as pd
import numpy as np
import random

# settings
observations = 100
np.random.seed(5)
value = np.random.uniform(low=-1, high=1, size=observations).tolist()
time = [t for t in pd.date_range('2020', freq='D', periods=observations)]#.format()]

df=pd.DataFrame({'time': time,
                 'value':value})
df['value']=df['value'].cumsum()
df1 = df.copy()
df1=df1.set_index('time')

# custom function to build labels as conditions of parameter valuesdefclassify(e):
    if e > 0.75: return'high'if e > 0.25: return'medium'if e >= 0: return'low'# custom function to set mode = line or marker, given data lengthdefmodes(df):
    iflen(df) > 1: return'lines'else: return'markers'# dictionary to specify marker or line color# this will depend on your real world labels !!!
cols = {'high': 'green',
         'medium': 'blue',
         'low': 'red'}

df['label1'] = [(elem-df['value'].min())/(df['value'].max()-df['value'].min()) for elem in df['value']]
df['label'] = [classify(elem) for elem in df['label1']]
df = df.drop('label1', 1)

df['group'] = df['label'].ne(df['label'].shift()).cumsum()
df = df.groupby('group')
dfs = []
for name, data in df:
    dfs.append(data)

fig = go.Figure()
# one line to connect them all
fig=go.Figure((go.Scatter(x=df1.index, y=df1['value'],
                          name = 'all data',
                          line=dict(color='rgba(200,200,200,0.7)'))))

showed = []
for frame in dfs:

    if frame['label'].iloc[0] notin showed:

        fig.add_trace(go.Scatter(x=frame['time'], y = frame['value'],
                                 mode = modes(frame),
                                 marker_color = cols[frame['label'].iloc[0]],
                                 legendgroup=frame['label'].iloc[0],
                                 name=frame['label'].iloc[0]))
        showed.append(frame['label'].iloc[0])
    else:
        fig.add_trace(go.Scatter(x=frame['time'], y = frame['value'],
                                 mode = modes(frame),
                                  marker_color = cols[frame['label'].iloc[0]],
                                 legendgroup=frame['label'].iloc[0],
                                 name=frame['label'].iloc[0],
                                 showlegend=False
                                ))
fig.update_layout(template='plotly_dark')
fig.update_xaxes(showgrid=False)
fig.update_layout(uirevision='constant')
fig.show()

First suggestion

How you should do this would depend highly on the structure of your dataset. By the sound of your question, I can only guess that it looks something like this:

timeparamlabel02020-01-01 -0.556014medium12020-01-02  0.185451high22020-01-03 -0.401111medium32020-01-04  0.436111high42020-01-05  0.412933high52020-01-06  0.636421peak62020-01-07  1.168237peak72020-01-08  1.205073peak82020-01-09  0.798674peak92020-01-10  0.174116high

If so, then yon can quickly run into a problem of a weird connectivity between your datapoints if you'd like to display param with a line trace with different colors. The first thing that comes to mind is to combine a line of one color, with markers of multiple colors like this:

This will give you a nice interactivity where you can switch all elements on and off, perhaps to study only the parts of your data where label=='peak:

Let me know how this works out for you and we can talk some more details. You'll find a data sample and all details here:

Complete code:

# importsimport plotly.express as px
import plotly.graph_objects as go
import pandas as pd
import numpy as np
import random

# settings
observations = 100
np.random.seed(5); cols = list('a')
param = np.random.uniform(low=-1, high=1, size=observations).tolist()
time = [t for t in pd.date_range('2020', freq='D', periods=observations).format()]

df=pd.DataFrame({'time': time,
                 'param':param})
df['param']=df['param'].cumsum()

defclassify(e):
    if e > 0.9: return'peak'if e > 0.75: return'high'if e > 0.25: return'medium'if e > 0.9: return'low'if e >= 0: return'bottom'

df['label1'] = [(elem-df['param'].min())/(df['param'].max()-df['param'].min()) for elem in df['param']]
df['label'] = [classify(elem) for elem in df['label1']]
df = df.drop('label1', 1)

fig=go.Figure((go.Scatter(x=df['time'], y=df['param'],
                         mode='lines',
                         line=dict(color='rgba(0,0,200,0.7)'))))
fig.add_traces(px.scatter(df, x='time', y='param', color='label').data)
fig.update_layout(template='plotly_dark')
fig.update_xaxes(showgrid=False)
fig.show()


Solution 2:

If I understand correctly, you are trying to plot a single time series of data with having two different color labels. Plotting multiple lines in the same graph would cause some overlap because it shares the time axis.

Why not use a scatter plot (without connecting the dots)? Depending on the density of data, that would visually look similar to connected lines/curves.

You could also try plotting blue and red lines with some vertical shifts to reduce overlap.
